Zinga Industries was established in 1972. In 1992, we moved into a new 110,000 square foot facility in Reedsburg, Wisc***in - only two hours from Milwaukee and three hours from Chicago. This new manufacturing facility can be expanded to 330,000 square feet on this site. A Canadian distribution center was opened in Ontario in 1996.
Our manufacturing capabilities include: aluminum die casting, mold making, machining, fabricating, assembly and silk screening.
The Zinga Industries product line features suction strainers and diffusers, spin-on filter heads and adapters (single and modular), in-tank filters, high-pressure filters (cartridge and spin-on), cellulose and synthetic elements, check and ball valves, gauges and reservoir accessories.
|
BTF Series
|
|
|
HOSE BEAD EXTERNALLY MOUNTED STRAINER
· 3/4" THRU 1 1/4" HOSE
· 30, 60, 100 & 200 STAINLESS STEEL WIRE MESH
· OPTIONAL 3 PSI (6" Hg) OR 5 PSI (10" Hg) BY-PASS VALVE
|
|
|
HS Series
|
|
|

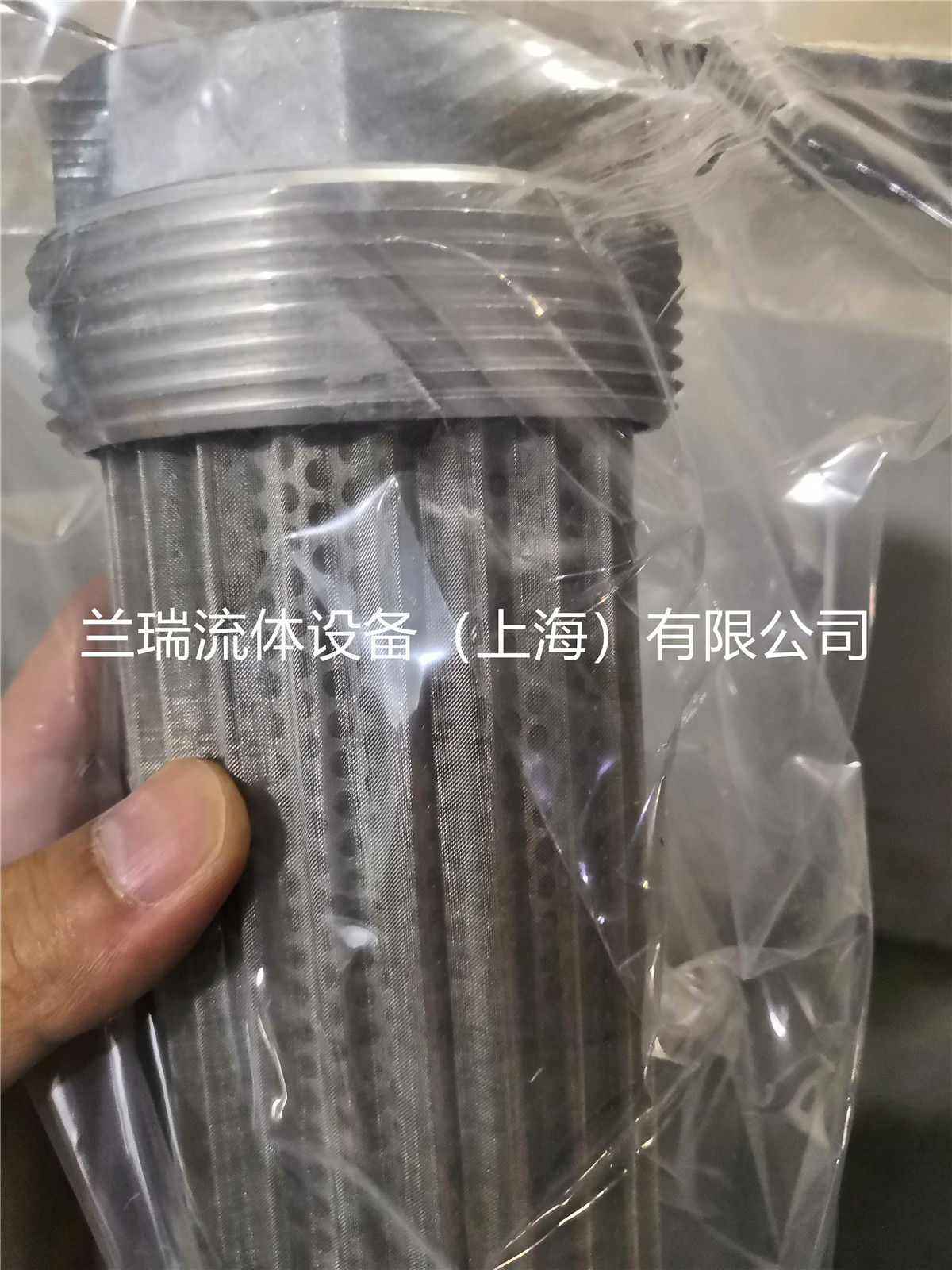

"CLEAN OUT" HATCH STRAINERS
· 3/4" THRU 6" NPTF OUTLET PORT
· 5" AND 6" HOSE BARB OUTLET PORT
· 30, 60, 100 & 200 STAINLESS STEEL WIRE MESH
· OPTIONAL 3 PSI (6" Hg) OR 5 PSI (10" Hg) BY-PASS VALVE
|
|
|
HS Magnetic Series
|
|
|
"CLEAN OUT" HATCH STRAINER WITH MAGNETS
· 3/4" THRU 2 1/2"" NPTF OUTLET PORT
· 30, 60, 100 & 200 STAINLESS STEEL WIRE MESH
· OPTIONAL 3 PSI (6" Hg) OR 5 PSI (10" Hg) BY-PASS VALVE ***AILABLE ON "B" AND "D" STYLES
|
|
|
MS Series
|
|
|
INTERNALLY MOUNTED TANK FILTER
· 3/8", 1/2", 3/4" & 1" NPTF OUTLET PORT
· 30, 60, 100 & 200 STAINLESS STEEL WIRE MESH
· OPTIONAL 3 PSI (6" Hg) OR 5 PSI (10" Hg) BY-PASS VALVE
|
|
|
SS Series
|
|
|
INTERNALLY MOUNTED TANK FILTER
· 3/8" THRU 6" NPTF OUTLET PORT
· 3/4" BSP
· 1 1/16"-12 UN (SAE-12) & 1 5/16"-12 UN (SAE-16)
· 100 PSI MAX OPERATING PRESSURE
· TEMPERATURES UP TO 250 F
· FOR USE WITH EE & ZEE SERIES FILTERS
|
|
|
RCB Series
|
|
|
TANK TOP FILTERS
· FLOWS UP TO 40 GPM (Return)
· 3/4" & 1" NPTF, SAE, & BSP PORTS
· 45 PSI OPERATING PRESSURE
|
|
|
SRF Series
|
|
|
SUCTION / RETURN LINE
TANK TOP FILTERS
· FLOWS UP TO 83 GPM (Return) 28 GPM (Suction)
· 1 1/4" & 1 1/2" NPTF
· 1 5/8"-12 UN (SAE-20) & 1 7/8"-12 UN (SAE-24)
· 1" & 1 1/4" BSP
· 100 PSI MAX OPERATING PRESSURE
· TEMPERATURES UP TO 250 F
· FOR USE WITH SRE & ZSRE SERIES FILTERS
|
|
|
|
|
TS Series
|
|
|
SUCTION / RETURN LINE
TANK TOP FILTERS
· FLOWS UP TO 71 GPM (Return) 24 GPM (Suction)
· 1 1/4" & 1 1/2" NPTF
· 1 5/8"-12 UN (SAE-20) & 1 7/8"-12 UN (SAE-24)
· 1 1/4" BSP
· 100 PSI MAX OPERATING PRESSURE
· TEMPERATURES UP TO 250 F FOR USE WITH SRE & ZSRE SERIES FILTERS
|
|
|
WF Series
|
|
|
SUCTION / RETURN LINE
TANK TOP FILTERS
· FLOWS UP TO 96 GPM (Return) 32 GPM (Suction)
· 1 1/4" & 1 1/2" NPTF
· 1 5/8"-12 UN (SAE-20) & 1 7/8"-12 UN (SAE-24)
· 1" & 1 1/4" BSP
· 500 PSI MAX OPERATING PRESSURE
· TEMPERATURES UP TO 250 F
· FOR USE WITH RE & ZRE SERIES FILTERS
|
|
|
WF-2 Series
|
|
|
SUCTION / RETURN LINE
TANK TOP FILTERS
· FLOWS UP TO 300 GPM (Return) 100 GPM (Suction)
· 2" NPTF, 2" (4) BOLT FLANGE, 2 1/2" (4) BOLT FLANGE, 3" (4) BOLT FLANGE
· 300 PSI MAX OPERATING PRESSURE
· TEMPERATURES UP TO 250 F
· FOR USE WITH WE & ZWE SERIES FILTERS
|
|
|
C16 Series
|
|
|
CARTRIDGE FILTER
· FLOWS UP TO 12 GPM
· USED IN COMMON C***ITY NO. C16-2
· 3000 PSI MAX OPERATING PRESSURE
· UP TO 250F OPERATING TEMPERATURE
· FOR USE WITH PETROLEUM BASED FLUIDS
|
|
|
CF Series
|
|
|
· 3000 PSI MAX OPERATING PRESSURE
· DIFFERENTIAL PRESSURE INDICATOR OPTION ***AILABLE
· 50 PSID BYPASS INCLUDED
|
|
|
P3000 Series
|
|
|
PRESSURE FILTERS
· FLOWS UP TO 120 GPM
· 6,000 PSI OPERATING PRESSURE
· SUITABLE FOR ALL CONVENTIONAL HYDRAULIC FLUIDS EXCEPT PHOSPHATE ESTERS
|
|
|
AE Series
|
|
|
SPIN-ON FILTER ELEMENTS
· 3, 10, & 25 MICRON (NOMINAL) FILTRATION
· 250 PSI MAX OPERATING PRESSURE
· OPERATING TEMPERATURES UP TO 250 F
· FOR USE WITH ZAF SERIES SPIN-ON FILTER HEADS
|
|
|
BE Series
|
|
|
SPIN-ON FILTER ELEMENTS
· 10, 25, & 40 MICRON (NOMINAL) FILTRATION
· BUILT-IN BYPASS OPTION ***AILABLE
· 200 PSI MAX OPERATING PRESSURE
· OPERATING TEMPERATURES UP TO 250 F
· FOR USE WITH BF SERIES SPIN-ON FILTER HEADS
|
|
|
DE Series
|
|
|
SPIN-ON FILTER ELEMENTS
· 10 & 25 MICRON (NOMINAL) FILTRATION
· INTERCHANGE FOR SOME DONALDSON AND CHAR-LYNN PRODUCTS
· 250 PSI MAX OPERATING PRESSURE
· OPERATING TEMPERATURES UP TO 250 F
|
|
|
GCE Series
|
|
|
SPIN-ON FILTER ELEMENTS
· INTERCHANGE ELEMENT FOR SELECT GRESEN & CROSS PRODUCTS
· 3, 10, & 25 MICRON (NOMINAL) FILTRATION
· 200 PSI MAX OPERATING PRESSURE
· OPERATING TEMPERATURES UP TO 250 F
· FOR USE WITH GF SERIES SPIN-ON FILTER HEADS
|
|
|
GLE Series
|
|
|
SPIN-ON FILTER ELEMENTS
· 3, 10, & 25 MICRON (NOMINAL) FILTRATION
· 200 PSI MAX OPERATING PRESSURE
· OPERATING TEMPERATURES UP TO 250 F
· FOR USE WITH GF SERIES SPIN-ON FILTER HEADS
|
|
|
HE Series
|
|
|
MEDIUM PRESSURE SPIN-ON FILTER ELEMENTS
· 3 & 10 MICRON (NOMINAL) FILTRATION
· 400 PSI MAX OPERATING PRESSURE
· OPERATING TEMPERATURES UP TO 250 F
· FOR USE WITH HF SERIES SPIN-ON FILTER HEADS
|
|
|

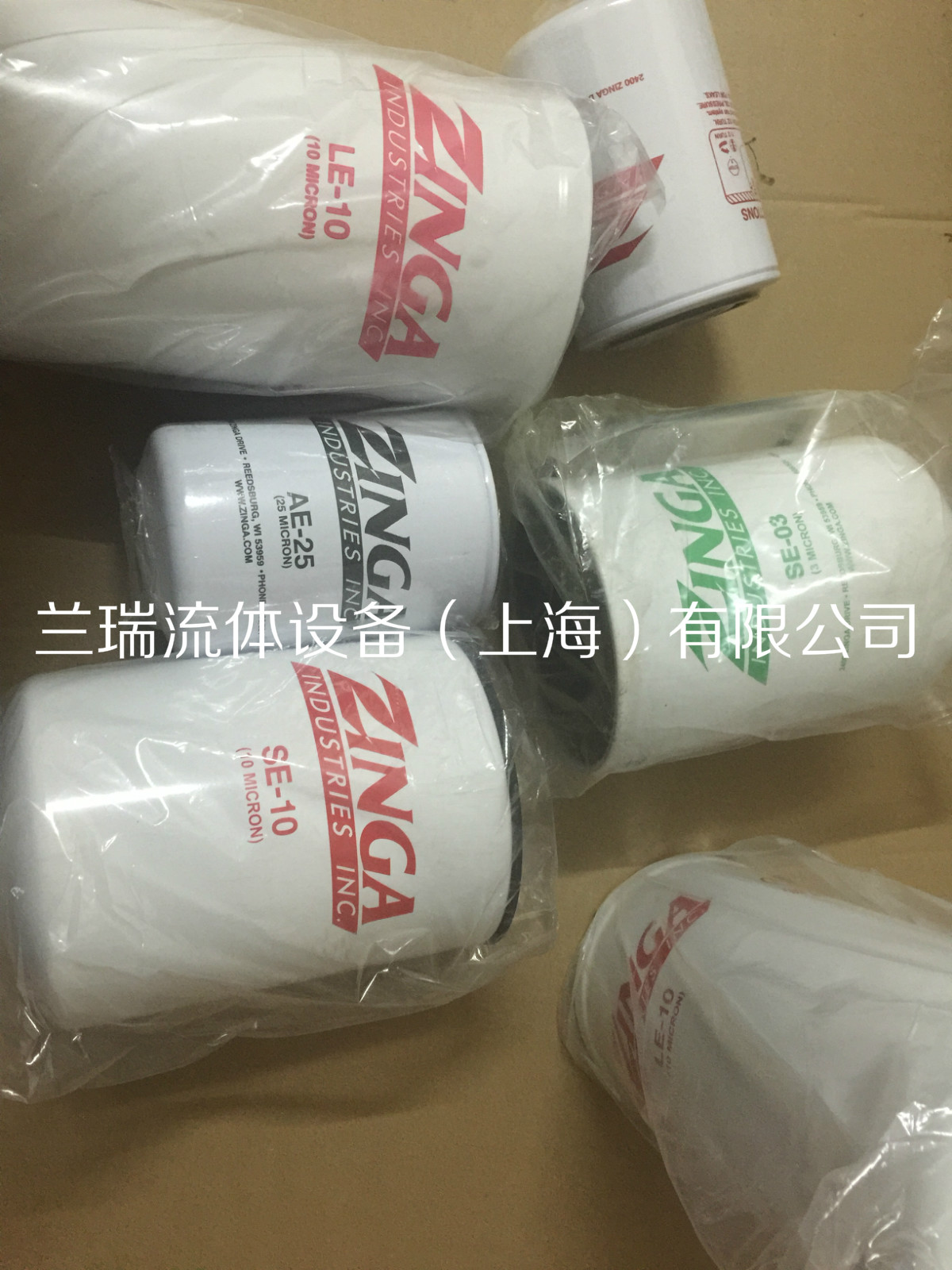

LE Series
|
|
|
SPIN-ON FILTER ELEMENTS
· 3, 10, & 25 MICRON (NOMINAL) FILTRATION
· 200 PSI MAX OPERATING PRESSURE
· OPERATING TEMPERATURES UP TO 250 F
· FOR USE WITH SF, DF, MF, MFT & ZDF SERIES SPIN-ON FILTER HEADS
|
|
|
ME Series
|
|
|
SPIN-ON FILTER ELEMENTS
· 3 &10 MICRON (NOMINAL) FILTRATION
· 500 PSI MAX OPERATING PRESSURE
· OPERATING TEMPERATURES UP TO 250 F
· FOR USE WITH DHF SERIES SPIN-ON FILTER HEADS
|
|
|

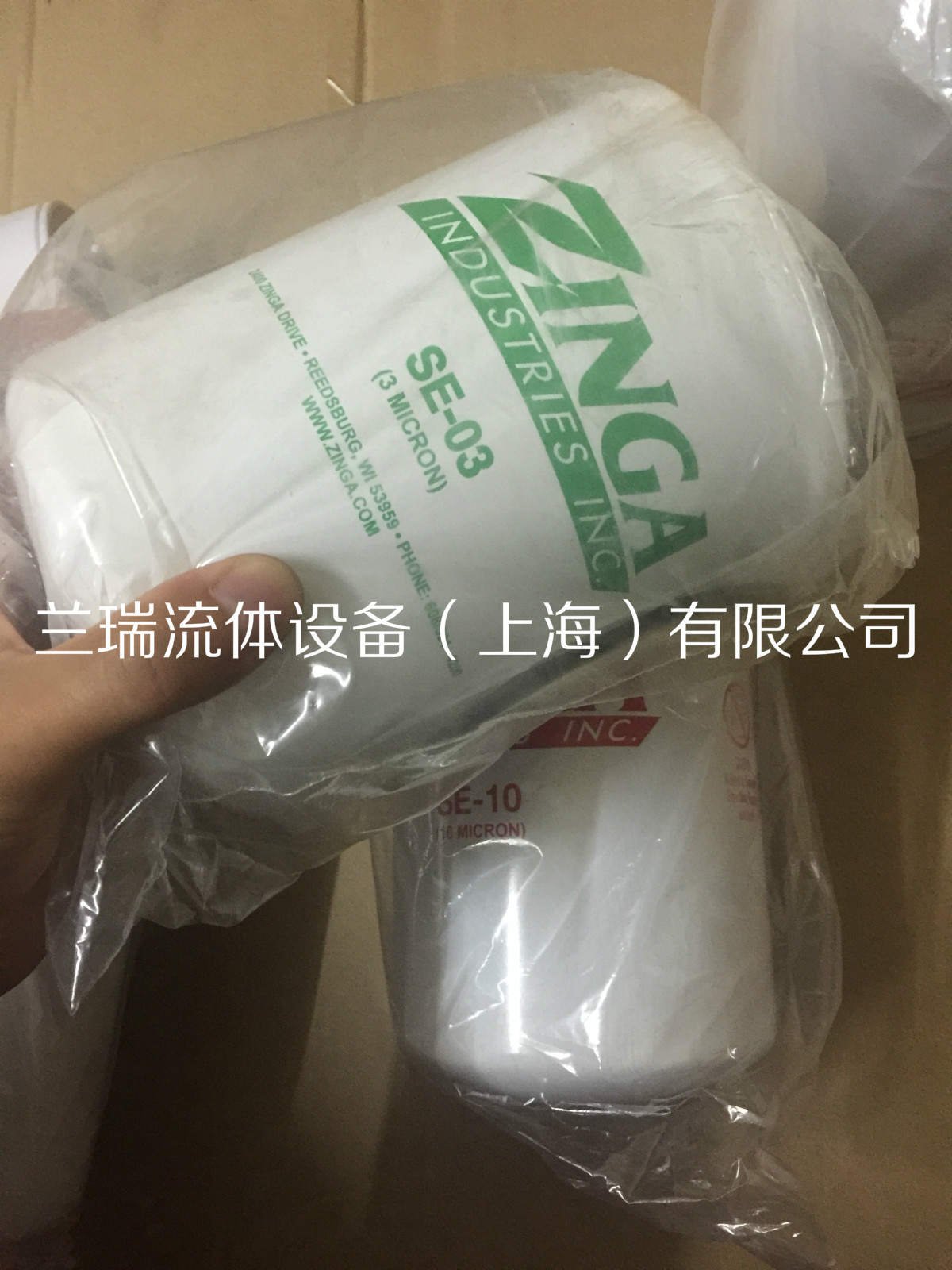

SE Series
|
|
|
SPIN-ON FILTER ELEMENTS
· 3, 10, & 25 MICRON (NOMINAL) FILTRATION
· 200 PSI MAX OPERATING PRESSURE
· OPERATING TEMPERATURES UP TO 250 F
· FOR USE WITH SF, DF, MF, MFT & ZDF SERIES SPIN-ON FILTER HEADS
|
|
|
VE Series
|
|
|
SPIN-ON FILTER ELEMENTS
· 10 MICRON (NOMINAL) FILTRATION
· 250 PSI MAX OPERATING PRESSURE
· OPERATING TEMPERATURES UP TO 250 F
· FOR USE WITH VAF SERIES SPIN-ON FILTER HEADS OR
INTERCHANGE WITH CESSNA, LENZ, RACINE, VICKERS
|
|
