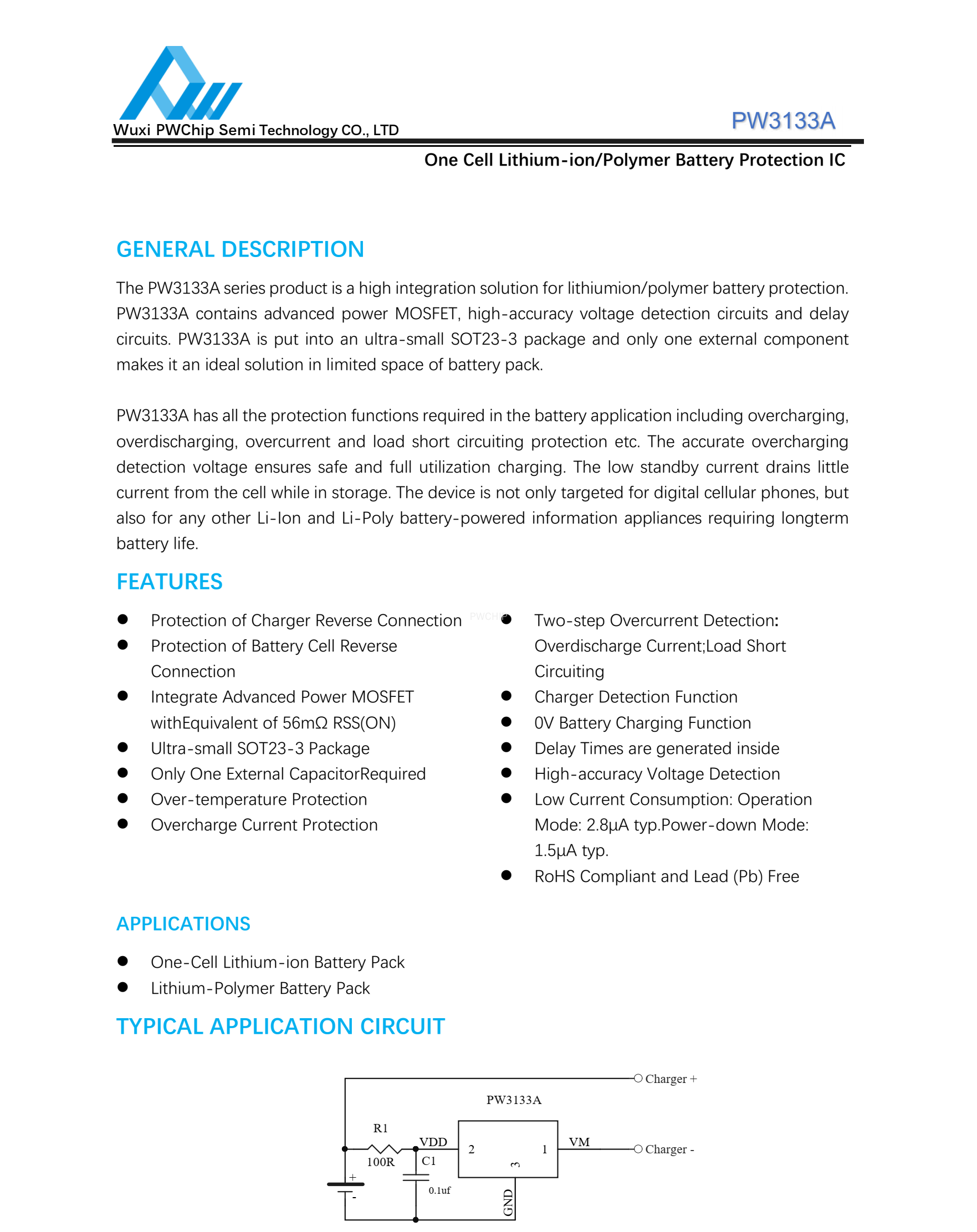

GENERAL DESCRIPTION
The PW3133A series product is a high integration solution for lithiumion/polymer battery protection.
PW3133A contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits. PW3133A is put into an ultra-***all SOT23-3 package and only one external component makes it an ideal solution in limited space of battery pack.
PW3133A has all the protection functi*** required in the battery application including overcharging, overdischarging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring longterm battery life..
FEATURES
- Protection of Charger Reverse Connection
- Protection of Battery Cell Reverse Connection
- Integrate Advanced Power MOSFET withEquivalent of 56mΩ RSS(ON)
- Ultra-***all SOT23-3 Package
- Only One External CapacitorRequired
- Over-temperature Protection
- Overcharge Current Protection
