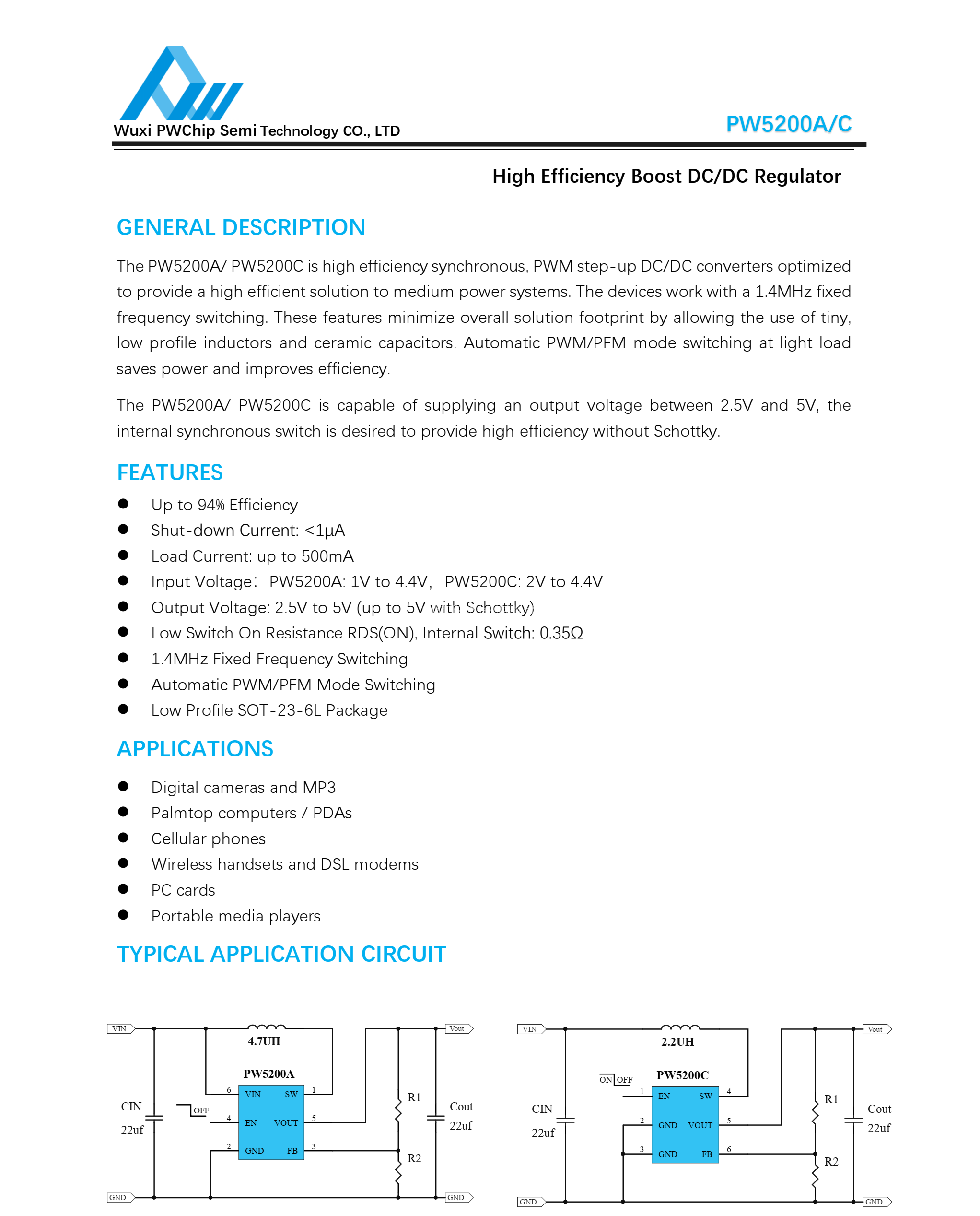

The PW5200A/ PW5200C is high efficiency synchronous, PWM step-up DC/DC converters optimized to provide a high efficient solution to medium power systems. The devices work with a 1.4MHz fixed frequency switching. These features minimize overall solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. Automatic PWM/PFM mode switching at light load s***es power and improves efficiency.
The PW5200A/ PW5200C is capable of supplying an output voltage between 2.5V and 5V, the internal synchronous switch is desired to provide high efficiency without Schottky.
FEATURES
- Up to 94% Efficiency
- Shut-down Current: <1μA
- Load Current: up to 500mA
- Input Voltage：PW5200A: 1V to 4.4V，PW5200C: 2V to 4.4V
- Output Voltage: 2.5V to 5V (up to 5V with Schottky)
- Low Switch On Resistance ***(ON), Internal Switch: 0.35Ω
- 1.4MHz Fixed Frequency Switching
- Automatic PWM/PFM Mode Switching
Low Profile SOT-23-6L Package
