AD0405HB-G70
ADDA直流24V风扇AD0924VB-A71GP 协禧9225GP大风量系列散热效果好

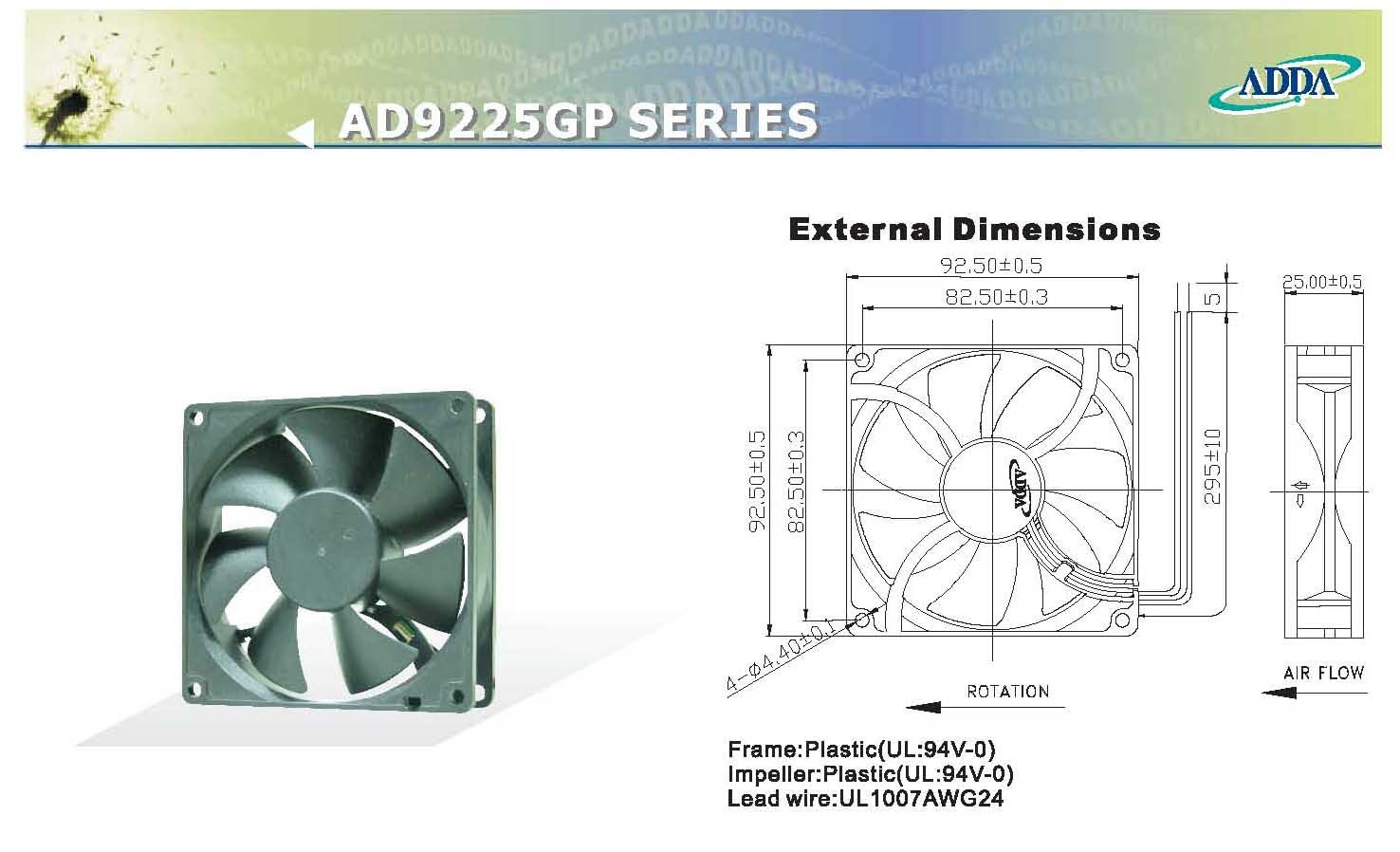

一、产品尺寸
二、产品型号
联系人；杨慧，手机：15997477147，***：3394547841邮箱：3394547841@***.com
店铺链接https://shop151348558.
地址：湖北武汉武昌区东湖高新四路一号
| Fan =DC-Fan | Size =92x92x25 | Speed = | Flow = | Noise = |
| Bearing type: ◎=Ball ※=Sleeve ○=1B1S ●=Hypro Bearing | |||||||||
| Frame Size | Model No | Bearing | Volt. (VAC) |
Current (A) |
Speed (rpm) |
Air Flow (CFM) |
Pressure (InAq) |
Noise (dB/A) |
|
| 92x92x25 | AD09212UB257BZ0 | ◎ | 12 | 0.33 | 4000 | 69.368 | 0.311 | 47.0 | |
| 92x92x25(ag) | AG09212DB257000 | ◎※● | 12 | 0.05 | 1500 | 27.70 | 0.055 | 26.0 | |
| 92x92x25(ag) | AG09212LB257000 | ◎※● | 12 | 0.09 | 2000 | 37.00 | 0.093 | 31.2 | |
| 92x92x25(ag) | AG09212MB257000 | ◎※● | 12 | 0.17 | 2500 | 45.80 | 0.137 | 37.5 | |
| 92x92x25(ag) | AG09212HB257000 | ◎※● | 12 | 0.24 | 3000 | 55.00 | 0.200 | 43.3 | |
| 92x92x25(ag) | AG09212UB257000 | ◎※● | 12 | 0.31 | 3300 | 60.70 | 0.235 | 46.0 | |
| 92x92x25(ag) | AG09212XB257000 | ◎ | 12 | 0.45 | 3800 | 70.56 | 0.300 | 50.0 | |
| 92x92x25(ag) | AG09224DB257000 | ◎※● | 24 | 0.03 | 1500 | 27.70 | 0.055 | 26.0 | |
| 92x92x25(ag) | AG09224LB257000 | ◎※● | 24 | 0.06 | 2000 | 37.00 | 0.093 | 31.2 | |
| 92x92x25(ag) | AG09224MB257000 | ◎※● | 24 | 0.11 | 2500 | 45.80 | 0.137 | 37.5 | |
| 92x92x25(ag) | AG09224HB257000 | ◎※● | 24 | 0.14 | 3000 | 55.00 | 0.200 | 43.3 | |
| 92x92x25(ag) | AG09224UB257000 | ◎※● | 24 | 0.18 | 3300 | 60.70 | 0.235 | 46.0 | |
| 92x92x25(g2) | AG09212DB257010 | ◎ | 12 | 0.13 | 2000 | 38.366 | 0.084 | 26.3 | |
| 92x92x25(g2) | AG09212LB257010 | ◎ | 12 | 0.16 | 2500 | 48.232 | 0.128 | 32.1 | |
| 92x92x25(g2) | AG09212MB257010 | ◎ | 12 | 0.22 | 3000 | 57.767 | 0.200 | 36.5 | |
| 92x92x25(g2) | AG09212HB257010 | ◎ | 12 | 0.31 | 3300 | 64.563 | 0.238 | 39.2 | |
| 92x92x25(g2) | AG09212UB257010 | ◎ | 12 | 0.35 | 3600 | 71.003 | 0.282 | 42.0 | |
| 92x92x25(g2) | AG09224DB257010 | ◎ | 24 | 0.05 | 2000 | 38.366 | 0.084 | 26.3 | |
| 92x92x25(g2) | AG09224LB257010 | ◎ | 24 | 0.09 | 2500 | 48.232 | 0.128 | 32.1 | |
| 92x92x25(g2) | AG09224MB257010 | ◎ | 24 | 0.14 | 3000 | 57.767 | 0.200 | 36.5 | |
| 92x92x25(g2) | AG09224HB257010 | ◎ | 24 | 0.17 | 3300 | 64.563 | 0.238 | 39.2 | |
| 92x92x25(g2) | AG09224UB257010 | ◎ | 24 | 0.18 | 3600 | 71.003 | 0.282 | 42.0 | |
| 92x92x25(gl) | AD0912DB-A73GL(N) | ◎※● | 12 | 0.05 | 1600 | 30.303 | 0.034 | 19.1 | |
| 92x92x25(gl) | AD0912LB-A73GL(N) | ◎※● | 12 | 0.09 | 2300 | 43.993 | 0.093 | 30.0 | |
| 92x92x25(gl) | AD0912MB-A73GL(N) | ◎※● | 12 | 0.14 | 2600 | 49.357 | 0.124 | 34.5 | |
| 92x92x25(gl) | AD0912HB-A73GL(N) | ◎※● | 12 | 0.18 | 2900 | 56.069 | 0.146 | 37.5 | |
| 92x92x25(gl) | AD0912UB-A73GL(N) | ◎※● | 12 | 0.27 | 3300 | 61.929 | 0.187 | 42.2 | |
| 92x92x25(gl) | AD0924LB-A73GL(N) | ◎※● | 24 | 0.08 | 2300 | 43.993 | 0.093 | 30.0 | |
| 92x92x25(gl) | AD0924MB-A73GL(N) | ◎※● | 24 | 0.09 | 2600 | 49.357 | 0.124 | 34.5 | |
| 92x92x25(gl) | AD0924HB-A73GL(N) | ◎※● | 24 | 0.11 | 2900 | 56.069 | 0.146 | 37.5 | |
| 92x92x25(gl) | AD0924UB-A73GL(N) | ◎※● | 24 | 0.16 | 3300 | 61.929 | 0.187 | 42.2 | |
| 92x92x25(gl) | AD0948HB-A73GL | ◎ | 48 | 0.11 | 2900 | 56.069 | 0.146 | 37.5 | |
| 92x92x25(gl-ht) | AD0912DB-A76GL(HT) | ◎※● | 12 | 0.06 | 1600 | 30.303 | 0.034 | 19.1 | |
| 92x92x25(gl-ht) | AD0912LB-A76GL(HT) | ◎※● | 12 | 0.10 | 2100 | 40.689 | 0.081 | 29.2 | |
| 92x92x25(gl-ht) | AD0912MB-A76GL(HT) | ◎※● | 12 | 0.15 | 2400 | 44.655 | 0.101 | 31.2 | |
| 92x92x25(gl-ht) | AD0912HB-A76GL(HT) | ◎※● | 12 | 0.24 | 2900 | 56.069 | 0.146 | 37.5 | |
| 92x92x25(gl-ht) | AD0912UB-A76GL(HT) | ◎※● | 12 | 0.28 | 3300 | 61.929 | 0.187 | 42.2 | |
| 92x92x25(gl-ht) | AD0924DB-A76GL(HT) | ◎※● | 24 | 0.04 | 1600 | 30.303 | 0.034 | 19.1 | |
| 92x92x25(gl-ht) | AD0924LB-A76GL(HT) | ◎※● | 24 | 0.05 | 2100 | 40.689 | 0.081 | 29.2 | |
| 92x92x25(gl-ht) | AD0924MB-A76GL(HT) | ◎※● | 24 | 0.08 | 2400 | 44.655 | 0.101 | 31.2 | |
| 92x92x25(gl-ht) | AD0924HB-A76GL(HT) | ◎※● | 24 | 0.15 | 2900 | 56.069 | 0.146 | 37.5 | |
| 92x92x25(gp) | AD0912HB-A73GP | ◎ | 12 | 0.19 | 3000 | 62.500 | 0.190 | 39.5 | |
| 92x92x25(gp) | AD0912UB-A73GP | ◎ | 12 | 0.37 | 3500 | 72.000 | 0.230 | 44.0 | |
| 92x92x25(gp) | AD0912XB-A73GP | ◎ | 12 | 0.47 | 4000 | 83.500 | 0.280 | 48.0 | |
| 92x92x25(gp) | AD0924HB-A73GP | ◎ | 24 | 0.12 | 3000 | 62.500 | 0.190 | 39.5 | |
| 92x92x25(gp) | AD0924UB-A73GP | ◎ | 24 | 0.18 | 3500 | 72.000 | 0.230 | 44.0 | |
| 92x92x25(gp) | AD0924XB-A73GP | ◎ | 24 | 0.24 | 4000 | 83.500 | 0.280 | 48.0 | |
| 92x92x25(gp) | AD0948HB-A73GP | ◎ | 48 | 0.08 | 3000 | 62.500 | 0.190 | 39.5 | |
| 92x92x25(gp) | AD0948UB-A73GP | ◎ | 48 | 0.12 | 3500 | 72.000 | 0.230 | 44.0 | |
| 92x92x25(gp) | AD0948XB-A73GP | ◎ | 48 | 0.17 | 4000 | 83.500 | 0.280 | 48.0 | |
三、ADDA直流风机命名规则
四、ADDA直流风机特殊功能电路图
1：
2：
五、ADDA直流风机常备现货型号：
92*92*20：
AD0924HS-C70(AD0924HB-C70) AD0912MX-C70 AD0912LS-C70(AD0912LB-C70) AD0912LX-C70 AD0912MS-C70(AD0912MB-C70) AD0924DX-C70 AD0924HX-C70 AD0912DS-C70(AD0912DB-C70) AD0924LS-C70(AD0924LB-C70) AD0924LX-C70 AD0912HS-C70(AD0912HB-C70) AD0924MX-C70 AD0912HX-C70 AD0924DS-C70(AD0924DB-C70) AD0912DX-C70 AD0924MS-C70(AD0924MB-C70)
92*92*25：
AD0912UX-A70GL AD0924UX-A71GL AD0924MX-A70GL AD0924UX-A70GL AD0924HX-A70GL AD0912DS-A70GL(AD0912DB-A70GL) AD0912DX-A70GL AD0912LS-A70GL(AD0912LB-A70GL) AD0912US-A71GL(AD0912UB-A71GL) AD0912MS-A70GL(AD0912MB-A70GL) AD0912US-A70GL AD0912UB-A70GL AD0924HS-A70GL AD0924HB-A70GL AD0924MS-A70GL(AD0924MB-A70GL) AD0924US-A71GL(AD0924UB-A71GL) AG09212HB257000 AD0924VB-A71GP AD0924XB-A71GP AD0912XB-A71GL(N) AD0912HB-A70GL AD0912HS-A70GL AD0948UB-A73GP AD0912HB-A71GL(N) AD0948XB-A73GP AD0912HX-A70GL AD0912MX-A70GL AD0912LX-A70GL AD0924US-A70(AD0924UB-A70) AD0924LS-A70(AD0924LB-A70) AD0924LX-A70 AD0912UX-A71GL(T) AD0924LB-A71GL(N) AD0948HB-A71GL(N) AD0912LB-A71GL(N) AD0912MB-A71GL(N) AD0924MB-A71GL(N) AD0912DB-A71GL(N) AD0912UB-A71GL(N) AD0924HB-A71GL(N) AD0924HB-A71GP AD0924UB-A71GL(N) AD0948UB-A71GL(N) AD0912HB-A73GP AD0912UB-A73GP AD0912XB-A71GP AD0912HB-A71GP AD0912UB-A71GP AD0912XB-A73GP AD0948HB-A73GP AD0948XB-A71GP AD0924UB-A71GP AD0924UB-A73GP AD0924XB-A73GP AD0924HB-A73GP AD0948HB-A71GP AD0948UB-A71GP AG09212LB257000 AG09212MB257000 AG09212XB257000 AG09224DB257000 AG09224HB257000 AG09212UB257000 AG09224MB257000 AG09212DB257000 AG09224LB257000 AG09224UB257000 AG09224XB257000
92*92*32：
AD0924MB-Y71GL(N) AD0924LB-Y71GL(N) AD0924HB-Y71GL(N) AD0912UB-Y71GL(N) AD0948HB-Y71GL(N) AD0912MB-Y71GL(N) AD0912HB-Y71GL(N) AD0948LB-Y71GL(N) AD0912LB-Y71GL(N) AD0948MB-Y71GL(N) AD0924UB-Y71GL(N) AD0924XB-Y71GL(N)
92*92*38：
AD0912HB-F71 AD0912XB-F9BDS AD0912HB-F91GP AD0912VB-F9BGP AD0912VB-F91GP AD0924HB-F91DS AD0948UB-F91DS AS09224LB389BB0 AS09224HB389BB0 AD0912UB-F9BGP AD0912UB-F91GP AD0912HB-F9BGP AD0924HB-F91GP AD0924HB-F9BGP AD0912XB-F9BGP AD0912XB-F91GP AD0924UB-F91GP AD0924XB-F91GP AD0924XB-F9BGP AD0948XB-F9BGP AD0948HB-F9BGP AD0912HB-F91DS AD0912HB-F9BDS AD0948XB-F91GP AD0948UB-F9BGP AD0912UB-F91DS AD0948HB-F91GP AD0924UB-F9BGP AD0912UB-F9BDS AD0948UB-F91GP AD0924HB-F9BDS AD0912VB-F9BDS AD0912VB-F91DS AD0912XB-F91DS AD0924XB-F9BDS AD0924UB-F91DS AD0924XB-F91DS AD0924UB-F9BDS AD0948HB-F91DS AS09212MB389BB0 AS09224MB389BB0 AS09212LB389BB0 AD0948UB-F9BDS AD0948XB-F91DS AD0948XB-F9BDS AD0948HB-F9BDS AS09212UB389BB0 AS09212HB389BB0 AS09248MB389BB0 AS09248LB389BB0 AS09248LB389BB0 AS09248HB389BB0 AS09224UB389BB0 AD0924HB-F71
