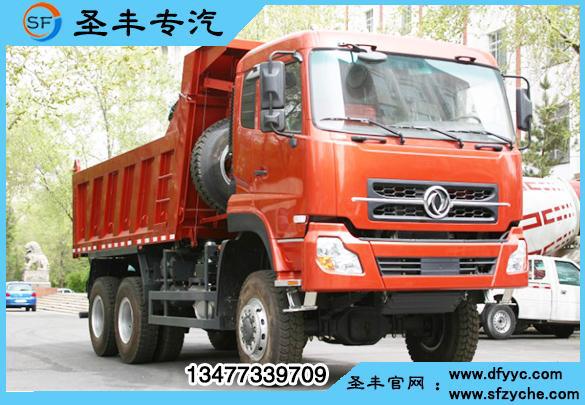

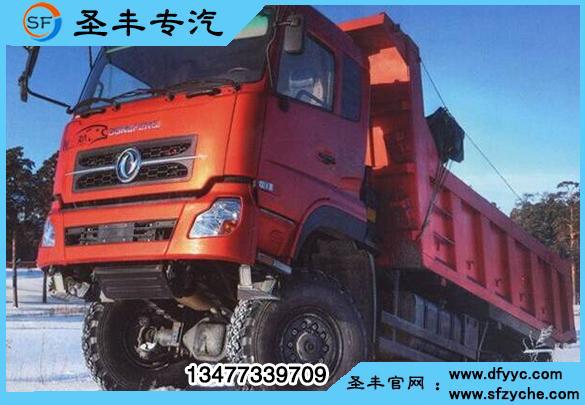

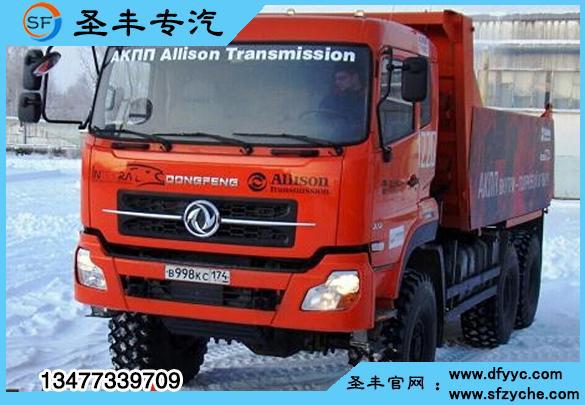

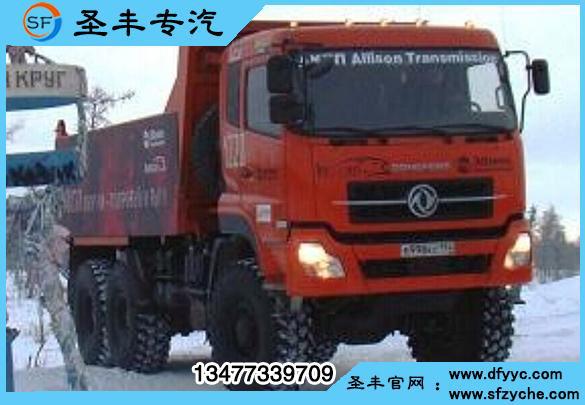

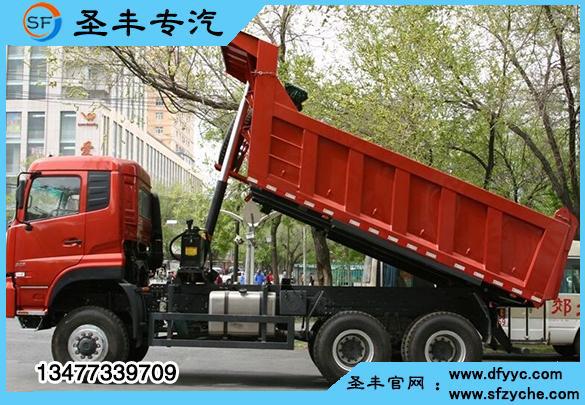

东风六驱越野自卸车出口***：134 7733 9709
|
产品名称及型号 Product name and model |
DFL3251AXA |
驱动方式 Drive mode |
6×6 |
|
尺寸参数 Size parameters |
外形尺寸 长×宽×高(mm) Overall dimensi***: length×width×height(mm) |
8150×2500×3600
|
|
|
货箱内部尺寸 长×宽×高(mm) Container inside dimension: length×width×height(mm) |
5000×2300×1100 |
||
|
轴距（mm） Wheel base（mm） |
3800+1350 |
||
|
轮距(前/后)(mm) Tread(Front/Rear)(mm) |
1997/1820 |
||
|
前悬/后悬(mm) Front overhang /Rear overhang (mm) |
1500/1500 |
||
|
接近角/离去角(º) Approach angle /Departure angle (º) |
30/37 |
||
|
***小离地间隙(mm) Minimum ground clearance(mm) |
300 |
||
|
油箱容积(L) Oil tank capacity (L) |
400 |
||
|
性能参数 Performance parameters |
***高车速(km/h) Maximum speed (km/h) |
76 |
|
|
***小转弯直径(m) Minimum turning diameter(m) |
19 |
||
|
***大爬坡度(%) Maximum gradability (%) |
60 |
||
|
质量参数 Mass parameter |
整备质量(kg) Unladen mass (kg) |
14650 |
|
|
额定载质量(kg) Rated load mass (kg) |
10350 |
||
|
总质量(kg) Gross mass(kg) |
25000 |
||
|
发动机 Engine |
型式及类别 Model and variety |
直列增压中冷六缸水冷柴油机 Straight inter-cooled 6-cylinder water-cooled diesel engine |
|
|
型号 Model |
ISLe375 30/40 |
||
|
生产企业 Manufacturer |
东风康明斯公司 Dongfeng Cummmins Co., Ltd. |
||
|
排量（ml） Discharge capacity（ml） |
8900 |
||
|
燃料种类 Fuel type |
柴油 Diesel |
||
|
额定功率/转速(kW/r/min) Rated power /speed (kW/r/min) |
275/2100 |
||
|
***大扭矩/转速(N.m/r/min) Maximum torque /speed (N.m/r/min) |
1550/1100-1400 |
||
|
缸径×行程(mm×mm) Cylinder diameter×tr***el route(mm×mm) |
114×144.5 |
||
|
压缩比 Compression ratio |
16.6:1 |
||
|
离合器 Clutch |
型号及型式 Model and type |
单片干式膜片离合器 Dry single disc clutch |
|
|
生产企业 Manufacturer |
东风汽车有限公司 Dongfeng Motor Company Limited |
||
|
操纵方式 Control mode |
液压远距离操纵 Hydraulic remote control |
||
|
磨擦片直径(mm) Wearing piece diameter (mm) |
φ430 |
||
|
变速箱 Tran***ission |
型式 type |
机械式9挡 mechanical 9-gear |
|
|
前进档位数 Forwa***ear digit |
9 |
||
|
速比 Speed ratio |
12.57 ,8.39 ,6.15,4.59,3.4,2.47,1.81,1.35,1.0,R13.14 |
||
|
分动箱 Auxiliary box |
型号 Model |
高低档带差速器锁 |
|
|
速比 Speed ratio |
0.89 1.536 |
||
|
车架 Frame |
结构型式 Structure type |
铆接结构 Riveted structure |
|
|
纵梁断面尺寸(mm) Longitudinal beam cross dimensi*** (mm) |
308×85×(8+8) 前940后800宽 |
||
|
电器 Electrical appliances |
电器线路电压(V) Electrical appliance line voltage(V) |
24 |
|
|
蓄电池型号\数量 Accumulator model\quantity |
6-QA-180D \2 pieces |
||
|
发电机 电压/电流 Generator Voltage/Current |
28V,70A |
||
|
车身 Body |
型号 Model |
D310平顶驾驶室 D310flat-roofed cab |
|
|
型式 Type |
可翻转式,卧铺加宽新内饰 Convertible, widened sleeper with new decoration |
||
|
生产企业 Manufacturer |
东风商用车公司 Dongfeng Commercial Vehicle Company |
||
|
驾驶室准乘人(人) Number of passengers in the cab (number) |
2 |
||
|

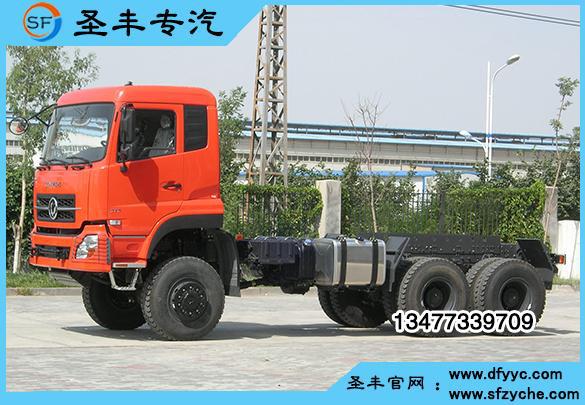

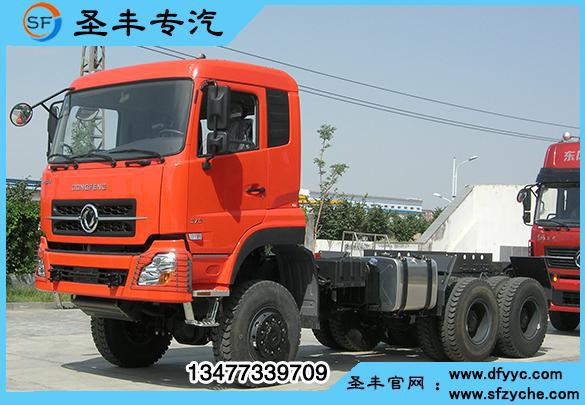

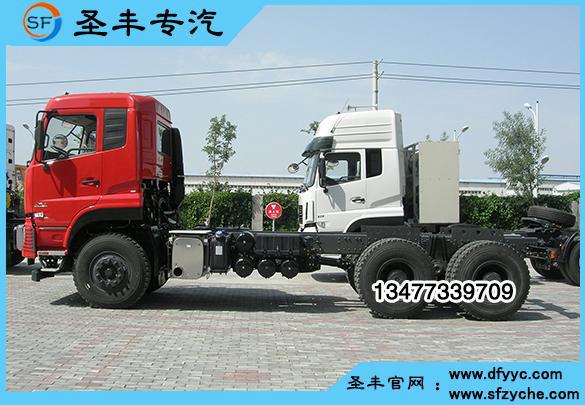

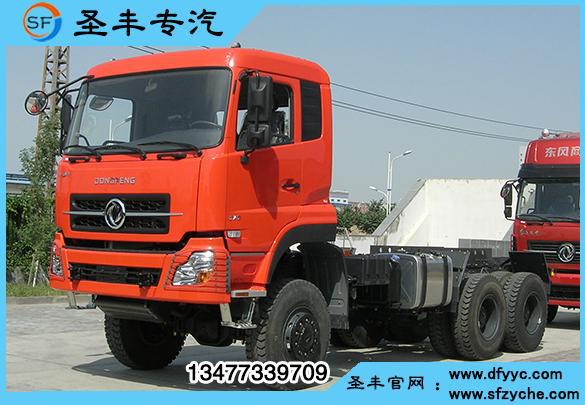

底盘 Chassis |
型号类别 Modeland type |
DFL3251AXAJ |
|
|
生产企业 Manufacturer |
东风汽车有限公司 Dongfeng Xinjiang Automobile Co., Ltd. |
||
|
轴数及轮胎 Number of axles and tire |
轴数 Number of axles |
3 |
|
|
轮辋型号 Wheel felloe model |
8.5-20 |
||
|
轮胎规格及轮胎数 Tire specification and tire number |
12.00R20 10+1 |
||
|
转向器 Redirector |
转向型式 Steering type |
动力转向 Power steering |
|
|
前桥 Frontgear |
型式 Type |
铸造桥壳带轮边减速 Cast rigid axle housing with hub reduction gear 差速锁 locking differential |
|
|
额定载荷（t) Rated load（t) |
7T级 Grade 7T |
||
|
中/后桥 Mid/Rear gear |
型式 Type |
铸造桥壳带轮边减速 Cast rigid axle housing with hub reduction gear 差速锁 locking differential 轴间差速锁 interaxial differential |
|
|
主减速比 Major reduction ratio |
5.73 |
||
|
额定载荷（t) Rated load（t) |
13T级×2 Grade 10T |
||
|
制动系统 Braking system |
行车制动型式 Auto brake type |
双回路气制动 2-circuit air braking |
|
|
行车制动助力型式 Auto brake boost type |
气压伺服助力 Pneumatic servo boost |
||
|
制动力调节型式 Brake power adjustment type |
手动 Manual |
||
|
制动器型式 Brake type |
鼓式 Drum type |
||
|
驻车制动型式 Parking brake type |
弹簧制动 Spring brake |
||
|
应急制动型式 Emergency brake type |
弹簧制动 Spring brake |
||
|
悬架 Overhang frame |
前 Front |
型式 Type |
钢板弹簧 Road spring |
|
钢板弹***数 Number of road springs |
9 |
||
|
后 Rear |
型式 Type |
钢板弹簧 Road spring |
|
|
钢板弹***数 Number of road springs |
10 |
||
