广泛的动态范围：在测试端口处具有 > 123 dB 的动态范围（典型值）
极快的测量速度：全双端口校准时为 41 ms，1601 点
低迹线噪声：70 kHz 中频带宽（IFBW）处为 0.004 dB rms
集成的 S 参数测试装置
端口选项：2 端口和 4 端口
平衡测量能力（4 端口选件）
频率选件：9 kHz 至 4.5 GHz/8.5 GHz、100 kHz 至 4.5 GHz/8.5 GHz （带有偏置 T 型接头）、300 kHz 至 20 GHz（带有偏置 T 型接头）
内置 Visual Basic 应用程序设计语言（VBA）

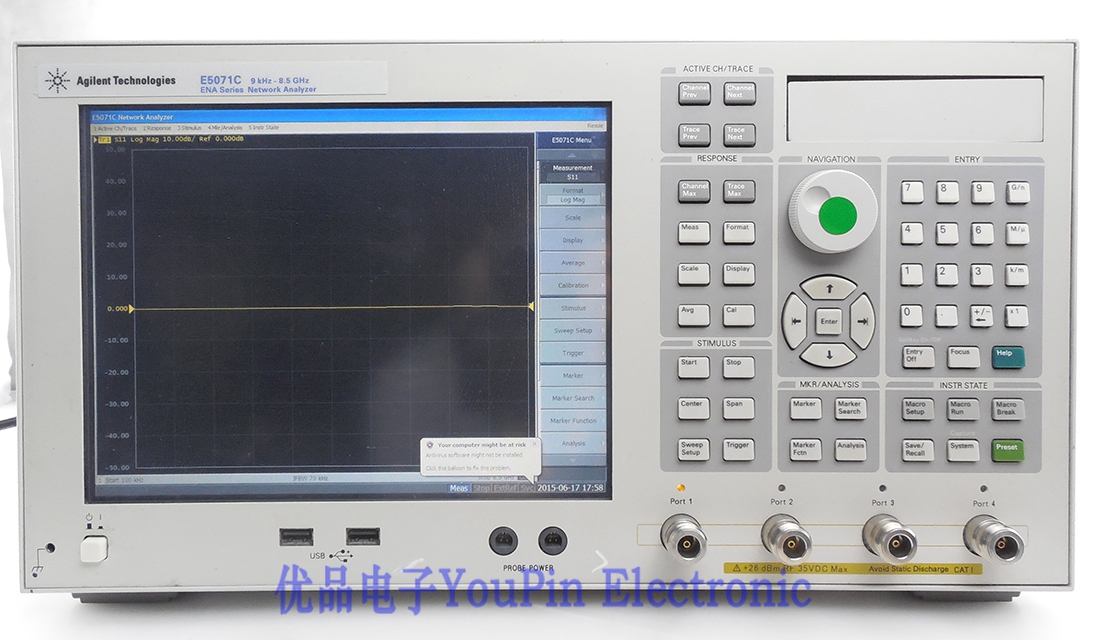

E5071C 网络分析仪具有同类产品中***高的射频性能和***快的速度，并具有宽频率范围和***的功能。它是制造和研发工程师们测试频率范围在 20 GHz 以内的射频元器件和电路的理想解决方案。
E5071C-008 Frequency offset mode
E5071C-010 Time domain analysis
E5071C-017 Removable Data Storage
E5071C-019 Standard Data Storage
E5071C-1A7 Calibration + Uncertainties + Guardbanding
E5071C-1CM Rack mount kit
E5071C-1CN Front handle kit
E5071C-1CP Rack mount and front handle kit
E5071C-1E5 High stability timebase
E5071C-240 2-port Test Set, 9 kHz to 4.5 GHz without Bias Tees
E5071C-245 2-port Test Set, 100 kHz to 4.5 GHz with Bias Tees
E5071C-260 2-port Test Set, 9 kHz to 6.5 GHz without Bias Tees
E5071C-265 2-port Test Set, 100 kHz to 6.5 GHz with Bias Tees
E5071C-280 2-port Test Set, 9 kHz to 8.5 GHz without Bias Tees
E5071C-285 2-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
E5071C-2D5 2-port Test Set, 300 kHz to 14 GHz with Bias Tees
E5071C-2K5 2-port Test Set, 300 kHz to 20 GHz with Bias Tees
E5071C-440 4-port Test Set, 9 kHz to 4.5 GHz without Bias Tees
E5071C-445 4-port Test Set, 100 kHz to 4.5 GHz with Bias Tees
E5071C-460 4-port Test Set, 9 kHz to 6.5 GHz without Bias Tees
E5071C-465 4-port Test Set, 100 kHz to 6.5 GHz with Bias Tees
E5071C-480 4-port Test Set, 9 kHz to 8.5 GHz without Bias Tees
E5071C-485 4-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
E5071C-4D5 4-port Test Set, 300 kHz to 14 GHz with Bias Tees
E5071C-4K5 4-port Test Set, 300 kHz to 20 GHz with Bias Tees
E5071C-790 Measurement wizard assistant software
E5071C-810 Add keyboard
E5071C-820 Add mouse
E5071C-A6J ANSI Z540-1-1994 Calibration
E5071C-TDR Enhanced Time Domain Analysis
E5071C-UNQ Standard stability timebase
E5092A 可配置的多端口测试仪
