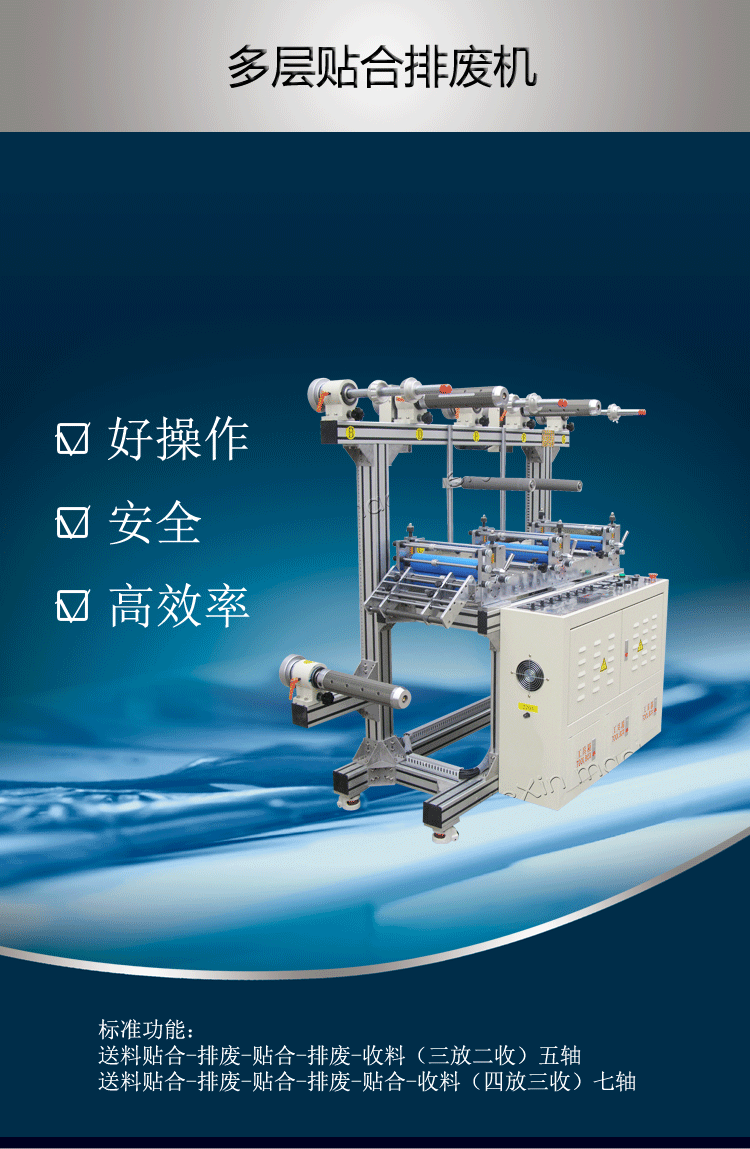

HX-320DT/420DT多层贴合机Multi-layer laminating machine
标准功能：
送料贴合-排废-贴合-排废-收料（三放二收）五轴
送料贴合-排废-贴合-排废-贴合-收料（四放三收）七轴
Standard function:
Feeding-laminating-waste discharging-laminating-waste discharging-winding (5 shafts)
Feeding-laminating-waste discharging-laminating-waste discharging- laminating-winding (7 shafts)
特点：
多层贴合胶辊可经行多条、多层材料的贴合、排废工作、材料的贴合张力全由磁粉张力控制器控制，保证贴合材料的平整度，每组贴合胶辊均可***调整上、下胶辊的压力、间隙，操作使用简捷方便。
Feature:
Multiple sets of film laminating shafts can perform laminating, waste discharging for multiple strips and multi-layer material. The film laminating tensi*** of material is totally controlled from end to end by magnetic powder tension controller. It guarrantees the flatness of film laminating material. Every film laminating plastic shaft can independently adjust the pressure and gap of upper and lower plastic shaft. It's easy and convenient to operate .
主要技术参数：
Main technical parameters：
|
型号 |

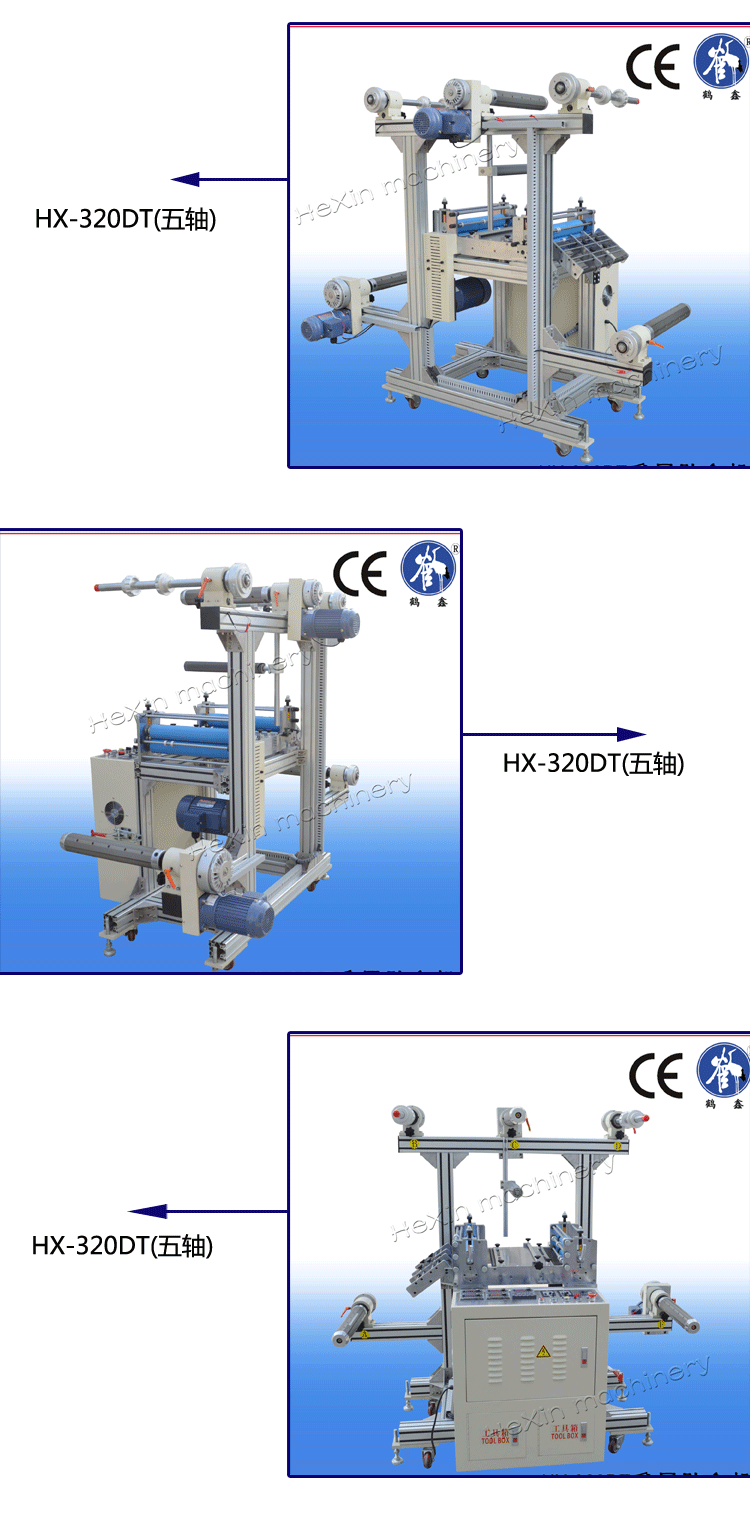

HX-320DT五轴( 5 shafts) |
HX-420DT五轴( 5 shafts) |
|
放料轴 |
3 |
3 |
|
收料轴 |
2 |
2 |
|
***大贴合宽度(mm)Max |
320mm |
420mm |
|
贴合速度 |
0-1500m/h |
0-1500m/h |
|
贴合精度(mm)Laminating |
&plu***n;0.1mm |
&plu***n;0.1mm |
|
收卷直径 |
600mm |
600mm |
|
张力控制器 |
5 |
5 |
|
电源 |
220V |
220V |
|
机器重量 |
250kg |
280kg |
|
机器外型(mm)Machine |
1600x1500x800mm |
1750x1250x1600mm |
|
主机功率(W)Machine |
900W |
900W |
|
型号 |
HX-320DT七轴(7 shafts) |
HX-420DT七轴(7 shafts) |
|
放料轴 |
4 |
4 |
|
收料轴 |
3 |
3 |
|
***大贴合宽度(mm)Max |
320mm |
420mm |
|
贴合速度 |
0-1500m/h |
0-1500m/h |
|
贴合精度(mm)Laminating |
&plu***n;0.1mm |
&plu***n;0.1mm |
|
收卷直径 |
600mm |
600mm |
|
张力控制器 |
7 |
7 |
|
电源 |
220V |
220V |
|
机器重量 |
400kg |
430kg |
|
机器外型(mm)Machine |
1600x1800x800mm |
2100x1250x1600mm |
|
主机功率(W)Machine |
1200W |
1200W |
